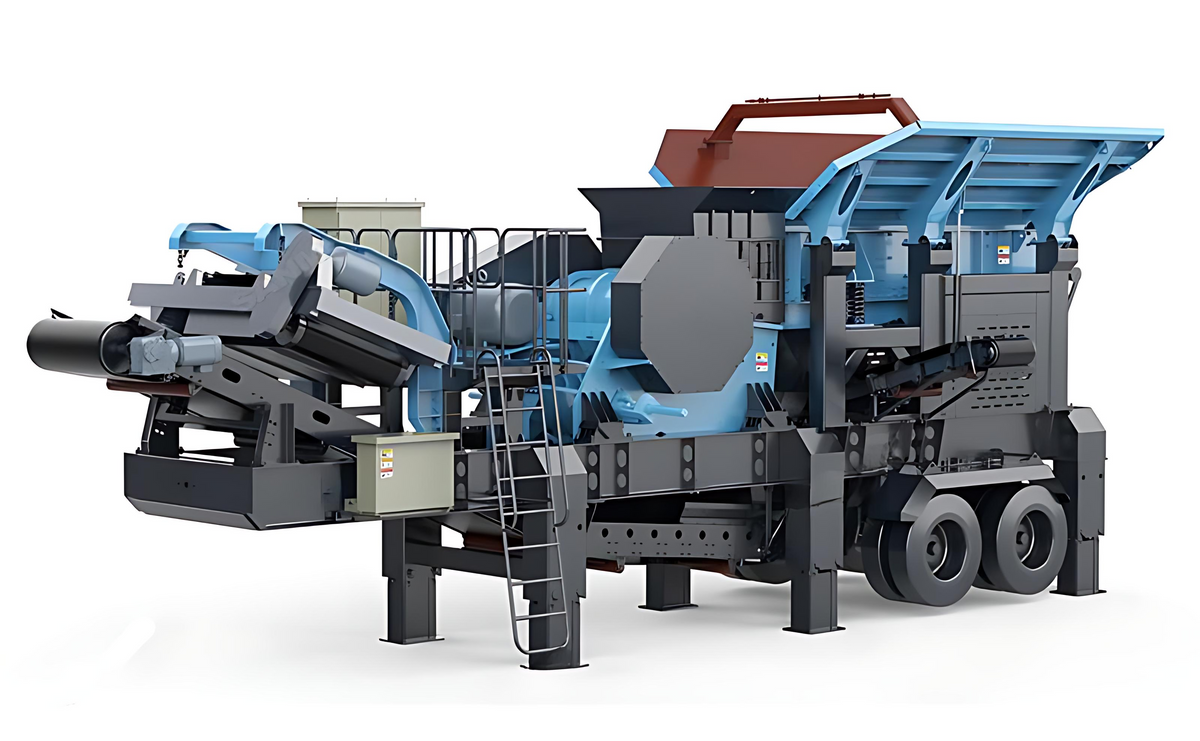

Mobile crusher is a crawler or tire-type equipment that can directly crush materials on site. It has the advantages of high mobility, flexible deployment and transportation cost saving. It is widely used in mining, sand and gravel aggregates, construction waste and recycling, which can significantly improve production efficiency and reduce operating costs. This article introduces the working principle, core advantages, typical application scenarios and selection guide of mobile crusher to help decision makers quickly understand and apply this technology.
1. Working principle and composition
Mobile crusher essentially integrates crushing, screening and conveying, and mainly includes the following modules:
Feeding system: vibrating feeder or belt feeder to ensure that the material enters the crushing chamber evenly
Crushing unit: Common jaw, cone or impact crusher, responsible for crushing or impact crushing large pieces of material to a set particle size
Screening unit: multi-layer vibrating screen classifies the crushed material, outputs qualified finished materials, and returns the coarse particles to the crusher for re-crushing
Conveying device: belt conveyor transports the finished material to the material pile or the next process, reducing the cost of manual handling
Power and control: Diesel engine or electric motor drive, PLC control system realizes one-button start and stop and remote monitoring
2. Core advantages
2.1 High mobility and rapid deployment
The crawler/tire chassis can move quickly between mining areas and construction sites, and can be deployed within 5-15 minutes without fixed infrastructure
On-site crushing reduces the long-distance transportation of ore or construction waste, saves fuel and labor costs, and can reduce overall operating costs by 15%-20%
2.2 Energy saving and environmental protection
Advanced crushing chamber and optimized power transmission, energy efficiency is 20%-30% higher than traditional fixed crushing system
Closed-circuit dust removal and spray dust suppression system effectively control dust emissions, meet EU and US environmental protection standards, and reduce the wear of equipment on-site dust
2.3 Flexible multi-stage crushing and screening
The modular design supports multiple combinations such as jaw crusher → impact crusher → cone crusher, as well as the switching of screening machines, to meet the needs of various processes such as coarse crushing, fine crushing and sand making
The function of fast chamber and screen replacement can be adjusted in real time according to the hardness and specifications of the material, shortening the switching time and ensuring production continuity.
3. Typical application scenarios
Scenario Description
Mining Directly crush ore on high walls or platforms to reduce transportation costs and support multi-point operations
Sand and gravel aggregate production On-site preparation of aggregates for infrastructure projects such as roads and bridges, with adjustable particle shape and high efficiency
Construction waste recycling On-site crushing and removal of waste materials such as concrete, bricks and stones to achieve re-production and reuse
Tailings and slag treatment Secondary crushing and screening of mining tailings, slag, etc. to improve resource recovery rate
4. Selection and procurement points
Production capacity and particle size requirements: Select the appropriate model based on the daily processing capacity (t/h) and the output particle size (mm), such as 100-500t/h jaw mobile crushers are often used in large mines
Material properties: hardness, moisture content, adhesion, etc. determine the type of crusher (jaw crusher vs impact crusher vs Cone crusher) and screen configuration
Power mode: Diesel drive is suitable for areas without electricity and grid, electric or hybrid can be used for fixed construction sites, energy-saving and lower noise
Maintenance and service: Products with quick replacement design of wearing parts and remote monitoring system are preferred to reduce downtime; examine the supplier's local service network and spare parts supply capabilities
5. Conclusion
Mobile crusher is becoming a "field factory" solution in the mining and infrastructure fields with its rapid deployment, high efficiency and energy saving, and flexible and multi-purpose. Reasonable selection and scientific operation can significantly reduce transportation and energy costs, improve production capacity and resource utilization, and is an important equipment for future green mining and sustainable construction.
